Home > Products > Switching Power Supply > S > S-800W High quality electrical equipment 5A switching power supply with low price

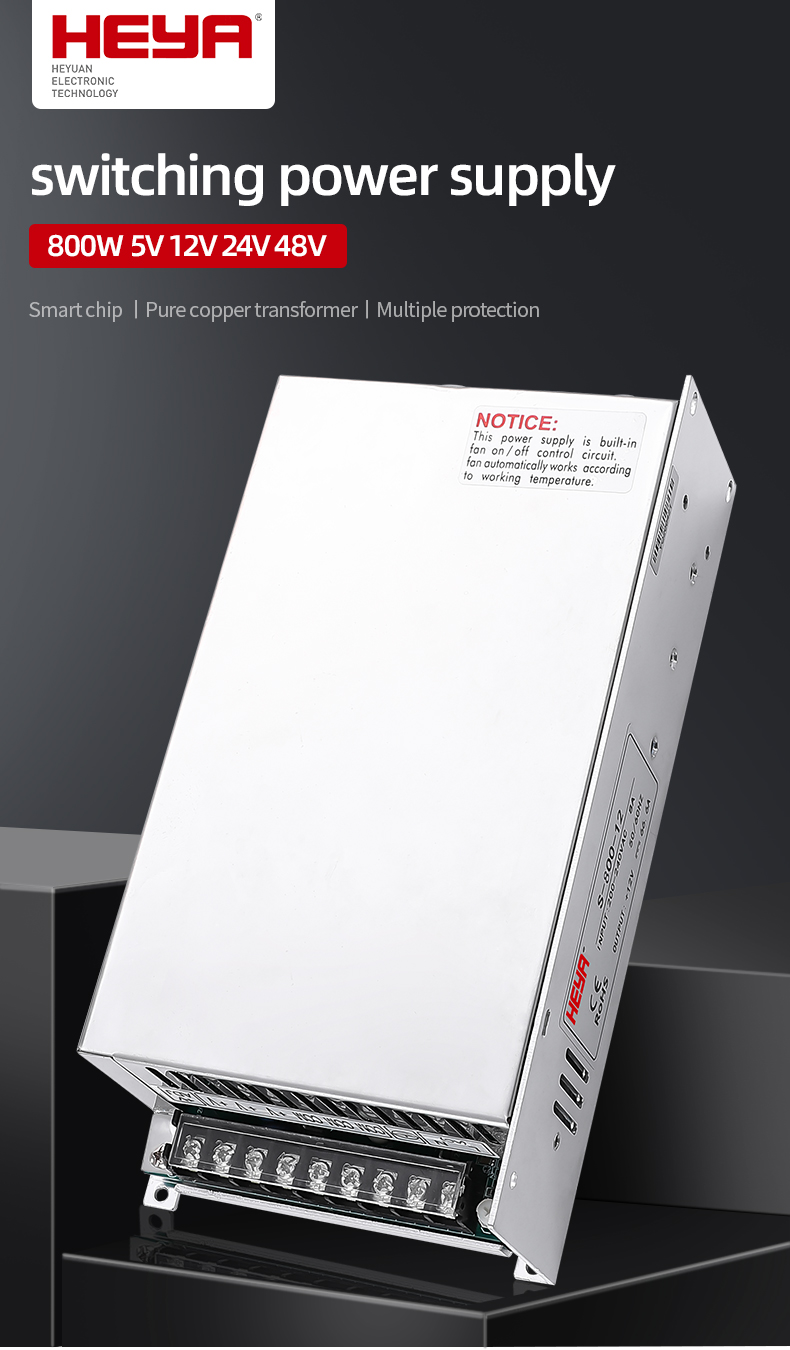

S-800W High quality electrical equipment 5A switching power supply with low price

Product Description

High quality electrical equipment 5A Switching Power Supply with low price



High quality AC/DC S-800 Switching Power Supply 5v12v 15v 24v

Product Description

1.Features

1. Input voltage selected by switch

2. Protection: short-circuit/ over-load/ over-voltage protection

3. Cooling by air

4. 100% full load burn-in test

5. 1 year warranty

2. Specification


S-800 800W switching power supply
project Technical index
output DC voltage 12V 24V 36V 48V
Rated current 66.5A 33.3A 22.2A 16.6A
Rated power 798W 799.2W 799.2W 796.8
Ripple and noise  <150mV <150mV <240mV <240mV
Voltage accuracy ±1%
Output voltage regulation range ±10%
Load adjustment rate <±1.2%  <±1%  <±0.5%  <±0.5%
Linear adjustment rate <±1%
input Voltage range 90-132/180-264VAC 47Hz~63Hz;254VDC~370VDC
Efficiency (typical)  >82% >84% >86% >86%
Working current
Impulse current  110VAC: 25A    220VAC: 50A
Start, rise, hold time 200ms,50ms,20ms :230VAC
protect overload protection 105% - 135% type: constant current output + VO reduced to undervoltage point cut off output reset: power on again
Overvoltage protection Close output when ≥ 115% - 145%
Short circuit protection Close output
Over temperature protection Rth3: ≥ 70 ℃ fast rotation of fan, ≥ 90 ℃ close output
Environmental Science Working temperature and humidity -10℃~+50℃;20%~90RH
Storage temperature and humidity -20℃~+85℃;10%~95RH
Safety regulations Withstand voltage Input output: 1.5kVac input shell: 1.5kVac output shell: 0.5kvac for 1 minute
Leakage current Input output < 6mA at 1.5kVac
Leakage current Input output at 220VAC < 1mA
Isolation resistance Input output, input shell, output shell: 500VDC / 100M Ω
Other size 241*125*65mm
Net weight / gross weight 1268/1358g

4.Please Note



1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity.

2. Error, include the setting error, line stability and load stability.

3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting.

4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage.

5. Load stability test: the load is from 0% to 100%, others 60%.

6. C2,3,6 must be knocked down.





High quality AC/DC S-60W-12V 5A Switching Power Supply 5v12v 15v 24v High quality AC/DC S-60W-12V 5A Switching Power Supply 5v12v 15v 24v High quality AC/DC S-60W-12V 5A Switching Power Supply 5v12v 15v 24v



FAQ

Q 1. what's the payment term?

A. We accept TT,30% deposit and 70% balance agaisnt copy of BL

Q 2. how's the delivery time ?

A. usually it will take about 25 days for production

Q 3. Tell me the standard of package?A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 4.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 6.Where is your market?A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 7. what kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE,PCT,SGS.





Contact us if you need more details on 5a Switching Power Supply. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Switch Mode Power Supply、Switching Power Supply. If these products fail to match your need, please contact us and we would like to provide relevant information.
