High quality electrical equipment 5A Switching Power Supply with low price

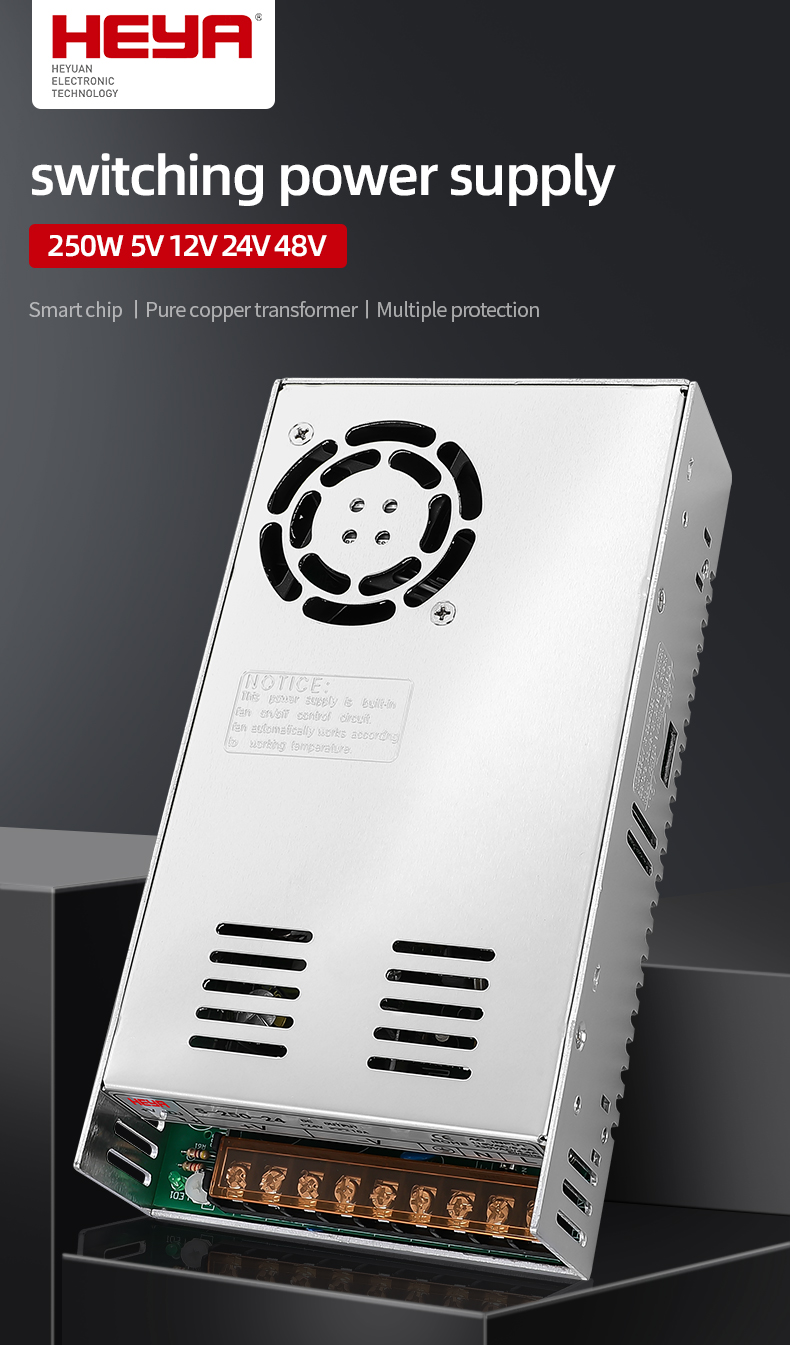

High quality AC/DC S-250 Switching Power Supply 5v12v 15v 24v
1. Input voltage selected by switch

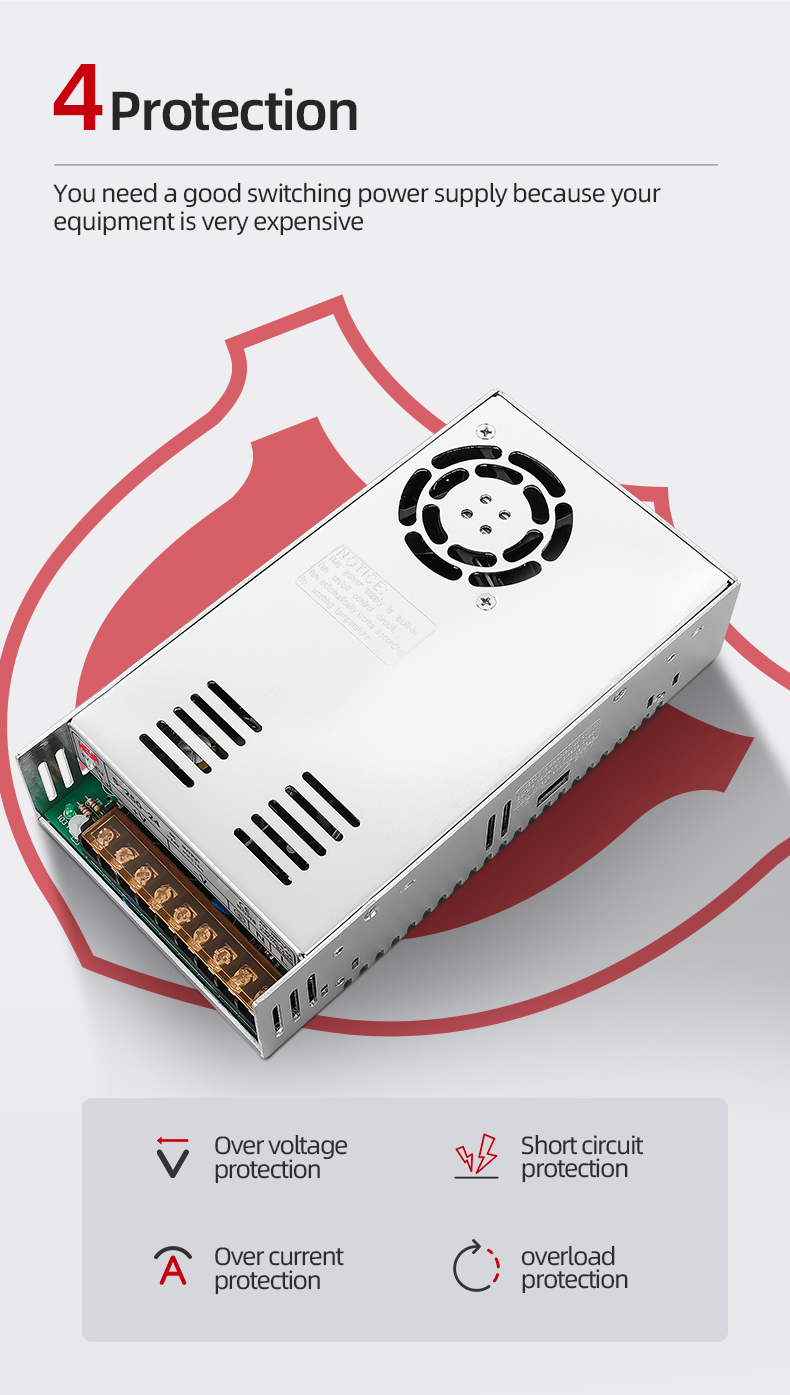

2. Protection: short-circuit/ over-load/ over-voltage protection
3. Cooling by air
4. 100% full load burn-in test
5. 1 year warranty
|S-250 250W switching power supply |
|project ||Technical index |
|output ||DC voltage ||5V ||12V ||24V ||36V ||48V |
|Rated current ||40A ||20.8A ||10.4A ||7A ||5.2A |
|Rated power ||200W ||249.6W ||249.6W ||252W ||249.6W |
|Ripple and noise ||<100mV ||<150mV ||<150mV ||<240mV ||<240mV |
|Voltage accuracy ||±2% ||±1% |

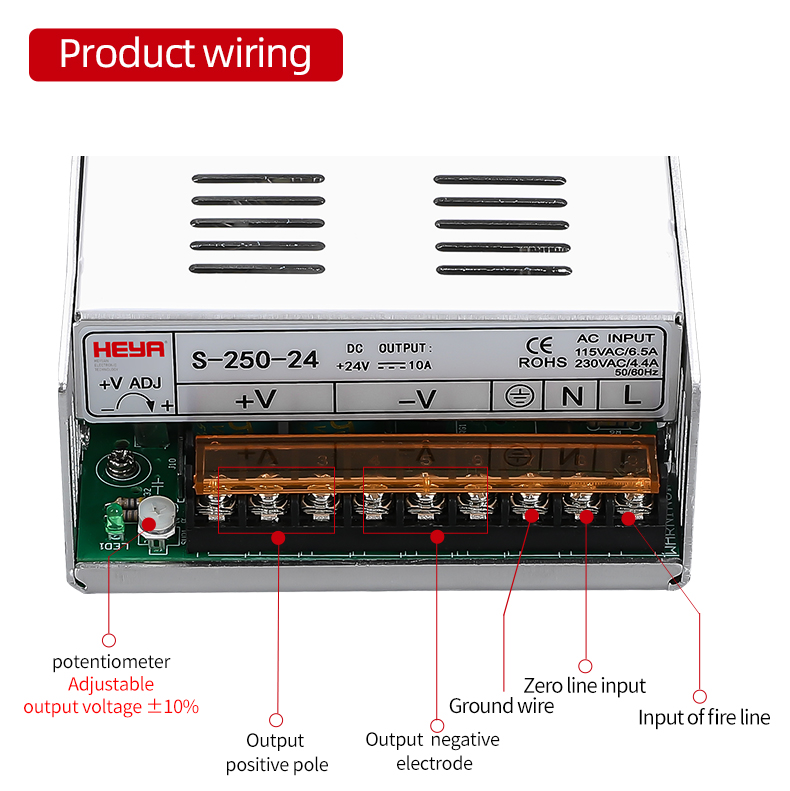

|Output voltage regulation range || ±10% |
|Load adjustment rate ||<±1.5% ||<±0.5% ||<±0.5% ||<±0.5% ||<±0.5% |
|Linear adjustment rate ||<±0.5% |
|input ||Voltage range ||90-132VAC/180-264VAC 47Hz~63Hz 254VDC~370VDC |
|Efficiency (typical) ||>78% ||>82% ||>84% ||>84% ||>84% |
|Working current || |
|Impulse current ||115VAC 25A, 220VAC 50A |
|Start, rise, hold time ||200ms,50ms,20ms :220VAC |
|protect ||overload protection ||105% - 150% type: constant current output + VO reduced to undervoltage point cut off output reset: power on again |
|Overvoltage protection ||115%-135%VOUT |
|Undervoltage protection ||35%-45%VOUT |
|Short circuit protection || +VODrop to undervoltage point to close output |
|Over temperature protection ||Rth3: ≥ 60 ℃ fan start, ≥ 50 ℃ fan close, ≥ 80 ℃ close output (5V) rth3: ≥ 65 ℃ fan start, ≥ 55 ℃ fan close, ≥ 85 ℃ close output (12v-48v) |
|Environmental Science ||Working temperature and humidity ||-10℃~+50℃;20%~90RH |
|Storage temperature and humidity ||-20℃~+85℃;10%~95RH |
|Safety regulations ||Withstand voltage ||Input output: 1.5kVac input shell: 1.5kVac output shell: 0.5kvac for 1 minute |
|Leakage current ||5mA at 1.5kVac input-output |
|Leakage current ||Input output at 220VAC < 1mA |
|Isolation resistance ||Input output, input shell, output shell: 500VDC / 100M Ω |
|Other ||size ||215*114*50mm |
|Net weight / gross weight ||866/925g |
|Net weight / gross weight ||440.8/478.5g |
1. The testing condition for the parameter above is: 230VAC input, rated load, 25℃ 70%Rh, Humidity.
2. Error, include the setting error, line stability and load stability.
3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting.
4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage.
5. Load stability test: the load is from 0% to 100%, others 60%.
6. C2,3,6 must be knocked down.
High quality AC/DC S-60W-12V 5A Switching Power Supply 5v12v 15v 24v High quality AC/DC S-60W-12V 5A Switching Power Supply 5v12v 15v 24v High quality AC/DC S-60W-12V 5A Switching Power Supply 5v12v 15v 24v
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. Tell me the standard of package?A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 4.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 6.Where is your market?A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 7. what kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE,PCT,SGS.
