500VA 1000VA 2000VA Wall Mounted Automaitc Voltage Regulator Stabilizers

Product Description

Banner

500VA 1000VA 2000VA Wall Mounted Automaitc Voltage Regulator Stabilizers

ARU YOU WORRIED ABOUT
VOLTAGE INSTABILITY?

500VA 1000VA 2000VA Wall Mounted Automaitc Voltage Regulator Stabilizers

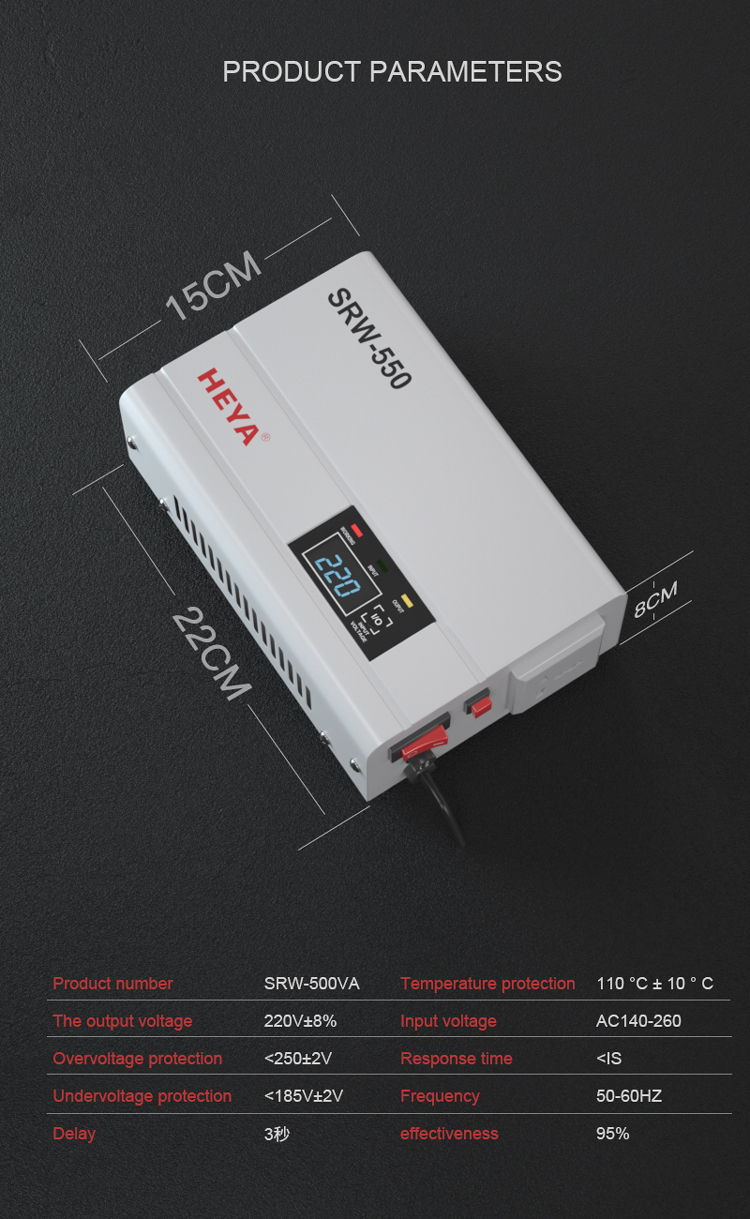

Technical Parameters

The advantages of this model:
1.Wide input voltage:AC 140~260V or customize
2.High technology:programmed control computerized
3.Fashion design:LED display which can show all protection functions.
4.Quality insurance:Main spare parts made by ourselves,for example,Transformer,PCB.
5.Perfect protection function:over/low voltage protection,over-heat/load protection,short circuit protection.
6.Option function:with voltage regulator and mains supply two kind output voltage choice function,in mains supply relatively stable season,the user can put Voltage Stabilizer in mains supply state,there is no power consumption,it is economic and convenient.
7.High efficiency:More than 95%

Model	SRW-500	SRW-1000		SRW-1500		SRW-2000		SRW-3000
	SRW-5000-D		SRW-8000-D		SRW-10000-D		SRW-12000-D
Nominal Power	500VA	1000VA		1500VA		2000VA		3000VA
	5000VA		8000VA		10000VA		12000VA
Power Factor	0.6-1.0
Input
Operating Voltage Range	A:70~285V,B:90~285V,C:125~285V
Regulation Voltage Range	A:80~260V,B:100~260V,C:140~260V
Frequency	50HZ
Connection Type	0.5~3KVA(Power cord with plug), 5~12KVA(Input terminal block)
Output
Operating Voltage	180~255V
High Cut Voltage	255V
Low Cut Voltage	180V
Safety Cycle	3 Seconds / 180 Seconds (Optional)
Frequency	50HZ
Connection Type	0.5-3KVA(Output socket), 5~12KVA(Output terminal block)
Regulation
Regulation %	8%
Number of Taps	7,6,5
Transformer Type	Toroidal auto transformer
Regulation Type	Relay Type
Indicators
LED display	Input voltage ,Output voltage ,Delay time
Protection
Over Temperature	Auto Shutdown at 120 ℃
Short Circuit	Auto Shutdown
Overload	Auto Shutdown
Over / Under Voltage	Auto Shutdown

500VA 1000VA 2000VA Wall Mounted Automaitc Voltage Regulator Stabilizers

Product Function

500VA 1000VA 2000VA Wall Mounted Automaitc Voltage Regulator Stabilizers

Related Products

500VA 1000VA 2000VA Wall Mounted Automaitc Voltage Regulator Stabilizers

Contact name: Yoko Zhu

Mob/ WeChat / WhatsApp : +86-13736244360 / 0086-13736244360

Skype ID: live:zyz0219 WeChat ID: zhuyuzhe002 QQ:97033586

Company Profile

500VA 1000VA 2000VA Wall Mounted Automaitc Voltage Regulator Stabilizers

Loading & Shipping

500VA 1000VA 2000VA Wall Mounted Automaitc Voltage Regulator Stabilizers

FAQ

Q 1. what's the payment term?

A. We accept TT,30% deposit and 70% balance agaisnt copy of BL.

Q 2. how's the delivery time ?

A. usually it will take about 10-25 days for production.For sample usually in 1 week.

Q 3. Tell me the standard of package?

A. For the small capacity, color box as inner package and carton as delivery package.

For big capacity, use strong wooden case for protection.

Q 4. What kind of material of transformer?

A. For servo type Stabilizer,we have two types, one 100% copper and the Other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.

Q 5.Could you offer Form A or C/O ?

A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q 6.Would you accept to use our logo ?

A.Our logo is HEYA.If your order has good quantity,it absolute no problem to do OEM.

But you use our logo HEYA will be high appreciated.

Q 7.We want to know month capacity.

A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs.

Q 8.Where is your market?A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.

Q 9. what kind of certificate you have ?

A. Our company already obtained CE,ISO9001, BV, EAC, SONCAP, CE, PCT, SGS,design and technical patents certificates.

Contact person:Yoko Zhu
Mob/WeChat/Whatsapp:008613736244360

Skype: live:zyz0219 WeChat ID:zhuyuzhe002 QQ:97033586

500VA 1000VA 2000VA Wall Mounted Automaitc Voltage Regulator Stabilizers

Contact us if you need more details on Voltage Regulator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Voltage Stabilizer、500va Voltage Stabilizer. If these products fail to match your need, please contact us and we would like to provide relevant information.
