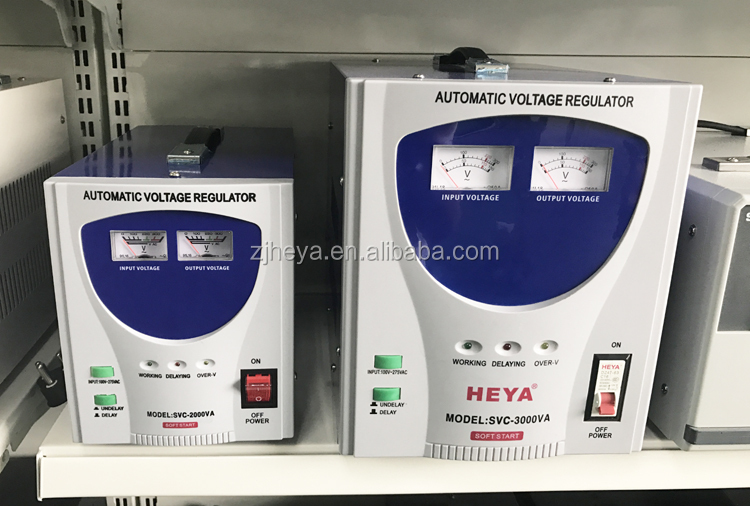

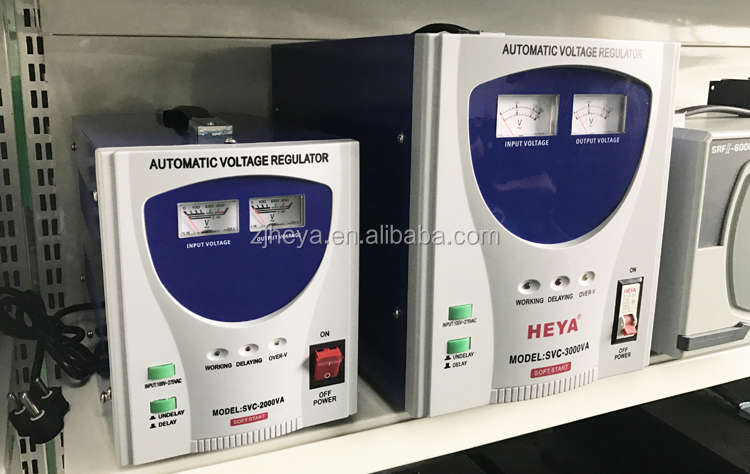

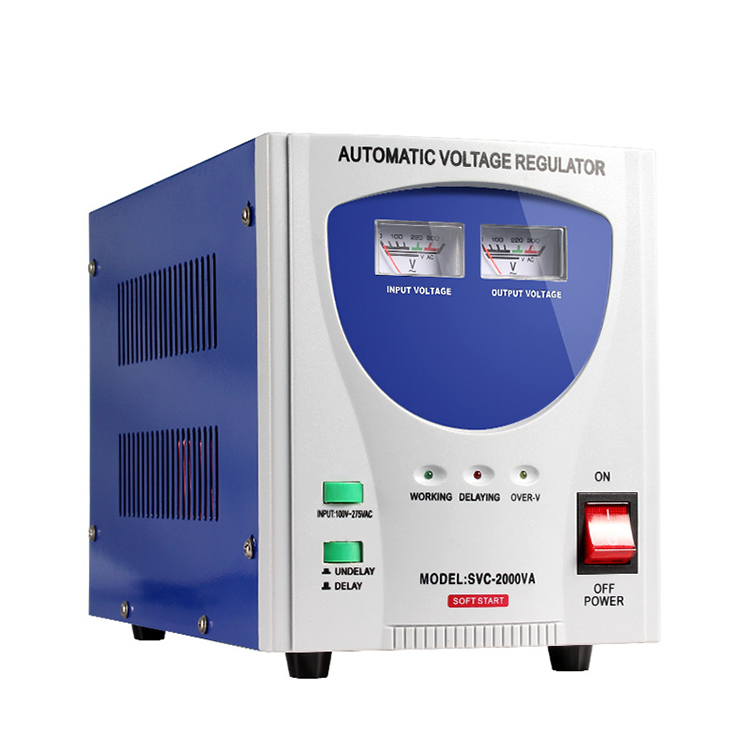

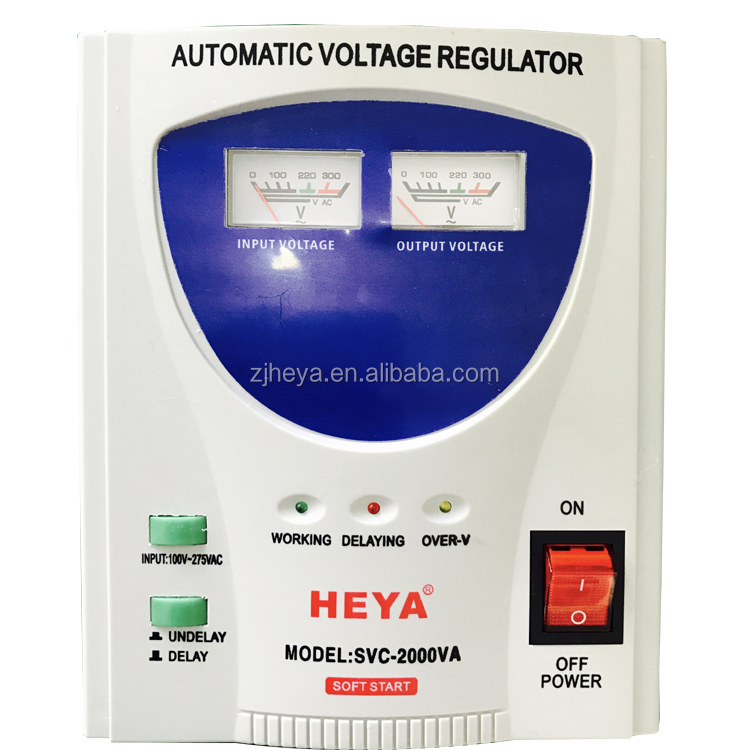

Bangladesh Function of SVC SVR 2000VA 3KVA 2KW 220VAC Servo Voltage Stabilizer

Product Description

Bangladesh Function of SVC SVR 2000VA 3KVA 2KW 220VAC Servo Voltage StabilizerBangladesh Function of SVC SVR 2000VA 3KVA 2KW 220VAC Servo Voltage StabilizerBangladesh Function of SVC SVR 2000VA 3KVA 2KW 220VAC Servo Voltage StabilizerThe advantages of this model:1.Wide input voltage:AC 140~260V or customize2.High technology:programmed control computerized3.The high accuracy of the output voltage(220V±1,5%)4.Fashion design:LCD display which can show all protection functions,such as input voltage,output voltage,temperature,delay time,loading.fault indication and so on.5.Quality insurance:Main spare parts made by ourselves,for example,Transformer,PCB.6.Perfect protection function:over/low voltage protection,over-heat/load protection,short circuit protection.7.Option function:with Voltage Regulator and mains supply two kind output voltage choice function,in mains supply relatively stable season,the user can put Voltage Stabilizer in mains supply state,there is no power consumption,it is economic and convenient.8.High efficiency:More than 95%

Model



SVC-500

SVC-1000

SVC-1500

SVC-2000

SVC-3000

SVC-5000

SVC-8000

SVC-10000

Nominal Power



500VA

1000VA

1500VA

2000VA

3000VA

5000VA

8000VA

10000VA

Power Factor

0.6-1.0

Input

Operating Voltage Range

120~275V

Regulation Voltage Range

140~260V (custom made)

Frequency

50HZ

Connection Type

0.5~1.5KVA(Power cord with plug), 2~12KVA(Input terminal block)

Output

Operating Voltage

180~255V

High Cut Voltage

255V

Low Cut Voltage

180V

Safety Cycle

3 Seconds / 180 Seconds (Optional)

Frequency

50HZ

Connection Type

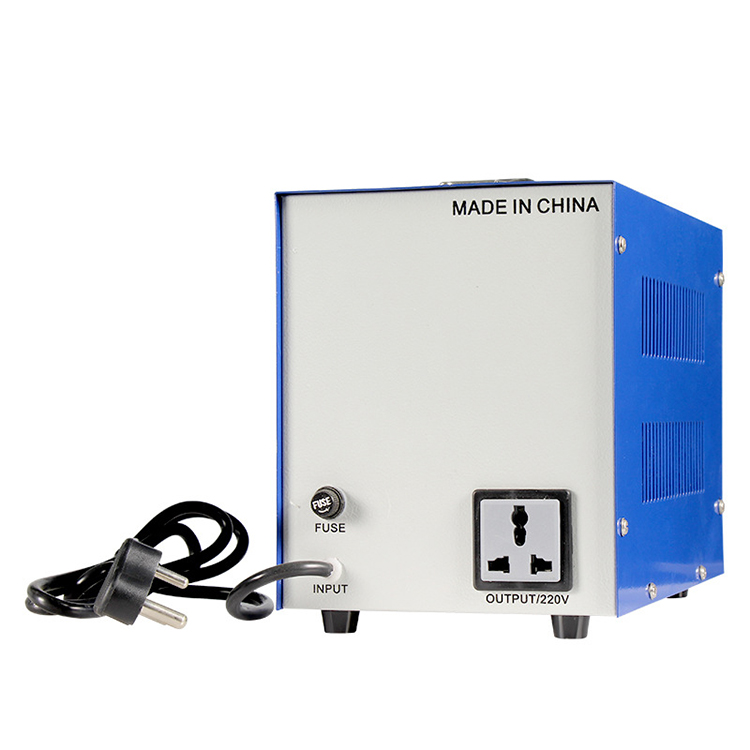

0.5-1.5KVA(Output socket),  2~10KVA(Output terminal block)

Regulation

Regulation %

1.5% / 3.5%

Number of Taps

NO

Transformer Type

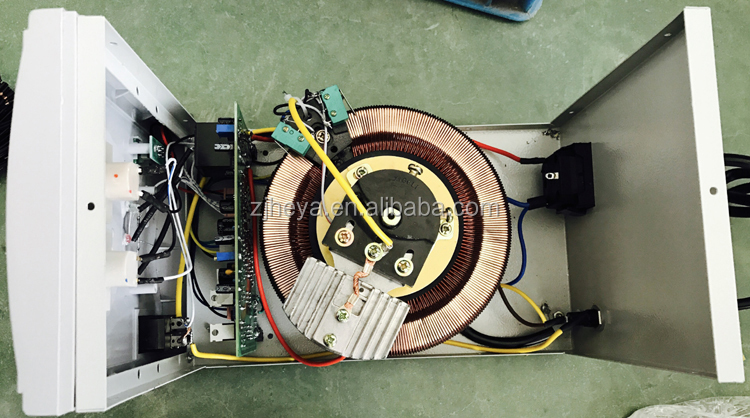

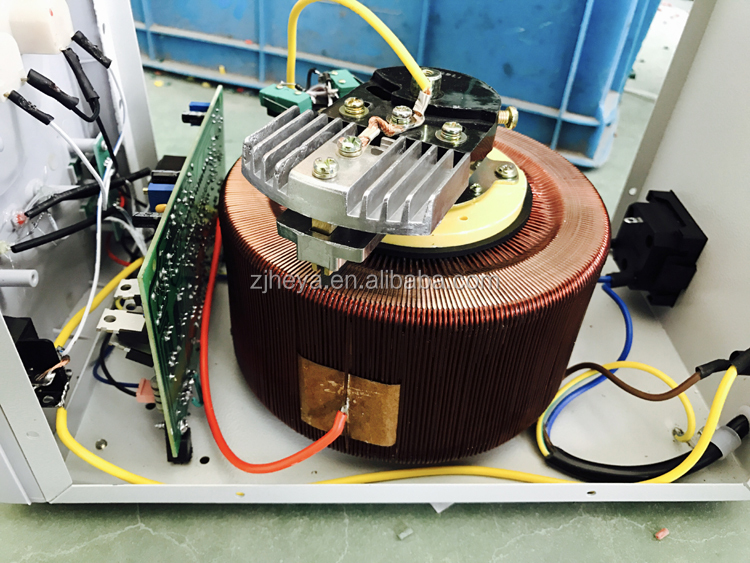

Toroidal auto transformer

Regulation Type

Servo type

Indicators

Digital / Meter display

Input voltage ,Output voltage,Load

Protection

Over Temperature

Auto Shutdown at 120 ℃

Short Circuit

Auto Shutdown

Overload

Auto Shutdown

Over / Under Voltage

Auto Shutdown

Packaging information

Model

Unit(PCS)

Device Size(MM)

Package Size(MM)

G.W.(KGS)

SVC-500

4

170*188*140

425*245*340

16.80

SVC-1000

4

198*212*160

495*275*385

22.40

SVC-1500

4

198*212*160

495*275*385

24.40

SVC-2000

4

280*245*195

615*355*240

18.50

SVC-3000

4

307*235*230

605*385*285

26.00

SVC-5000

4

310*390*200

460*390*275

18.00

SVC-8000

1

310*390*200

460*390*275

24.00

SVC-10000

1

310*390*200

460*390*275

25.50

Bangladesh Function of SVC SVR 2000VA 3KVA 2KW 220VAC Servo Voltage StabilizerBangladesh Function of SVC SVR 2000VA 3KVA 2KW 220VAC Servo Voltage StabilizerBangladesh Function of SVC SVR 2000VA 3KVA 2KW 220VAC Servo Voltage StabilizerBangladesh Function of SVC SVR 2000VA 3KVA 2KW 220VAC Servo Voltage StabilizerBangladesh Function of SVC SVR 2000VA 3KVA 2KW 220VAC Servo Voltage StabilizerBangladesh Function of SVC SVR 2000VA 3KVA 2KW 220VAC Servo Voltage StabilizerSVC SVR-2KVA/3KVA PRODUCTS(ACCPET CUSTOMIZE)Contact information:Contact name: Yoko ZhuSkype: zyz0219              Wechat / iMessage/ WhatsApp : +86-13736244360 / 0086-13736244360Wechat(1): zhuyuzhe002     Wechat(2): 008613736244360     QQ:97033586Related ProductsBangladesh Function of SVC SVR 2000VA 3KVA 2KW 220VAC Servo Voltage StabilizerProduct FunctionBangladesh Function of SVC SVR 2000VA 3KVA 2KW 220VAC Servo Voltage StabilizerPackaging & ShippingBangladesh Function of SVC SVR 2000VA 3KVA 2KW 220VAC Servo Voltage StabilizerCompany FrofileBangladesh Function of SVC SVR 2000VA 3KVA 2KW 220VAC Servo Voltage StabilizerBangladesh Function of SVC SVR 2000VA 3KVA 2KW 220VAC Servo Voltage StabilizerBangladesh Function of SVC SVR 2000VA 3KVA 2KW 220VAC Servo Voltage StabilizerContact usBangladesh Function of SVC SVR 2000VA 3KVA 2KW 220VAC Servo Voltage StabilizerContact information:Contact name: Yoko ZhuSkype: zyz0219              Wechat / iMessage/ WhatsApp : +86-13736244360 / 0086-13736244360Wechat(1): zhuyuzhe002          QQ:97033586Function of SVC 2000VA 2KW 220VAC servo automatic voltage stabilizerFunction of SVC 2000VA 2KW 220VAC servo automatic voltage stabilizerFunction of SVC 2000VA 2KW 220VAC servo automatic voltage Stabilizer
